13661621501

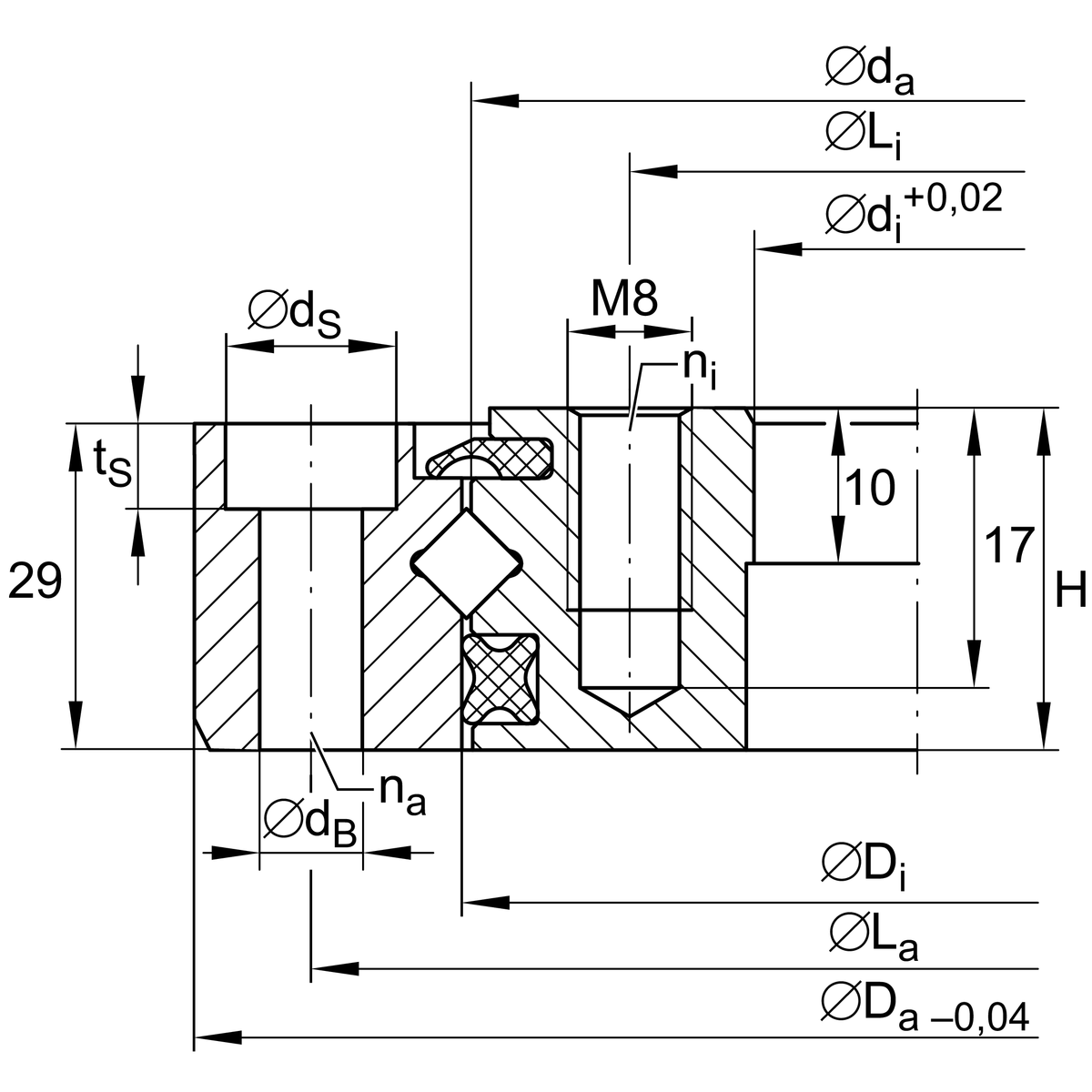

d |
69 mm |
D |
170 mm |
B |
30 mm |
ha |
29 mm | outer ring width |
La |
148 mm | Pitch diameter fixing hole outer ring |
na |
6 | Number of outer ring fixing holes |
dB |
9 mm | fixing hole |
dS |
15 mm | diameter of fixing hole |
tS |
9 mm | fixing hole depth |
Li |
90 mm | Pitch circle diameter fixing hole inner ring |
ni |
6 | Number of inner ring fixing holes |
|
|
M8 | Tread fixing hole |
tG |
17 mm | Thread depth |
VSP min |
0.005 mm | Minimum bearing preload |
VSP max |
0.008 mm | Maximum bearing preload |
T min |
-30 °C | Minimum operating temperature |
T max |
80 °C | Maximum operating temperature |
Ca |
49,000 N | Basic dynamic load rating, axial |
Cr |
35,000 N | Basic dynamic load rating, radial (for radial load only) |
C0a |
62,000 N | Basic static load rating, axial |
C0r |
30,500 N | Basic static load rating, radial (for radial load only) |
Fr zu. |
9,100 N | Max. radial load screws |
