13661621501

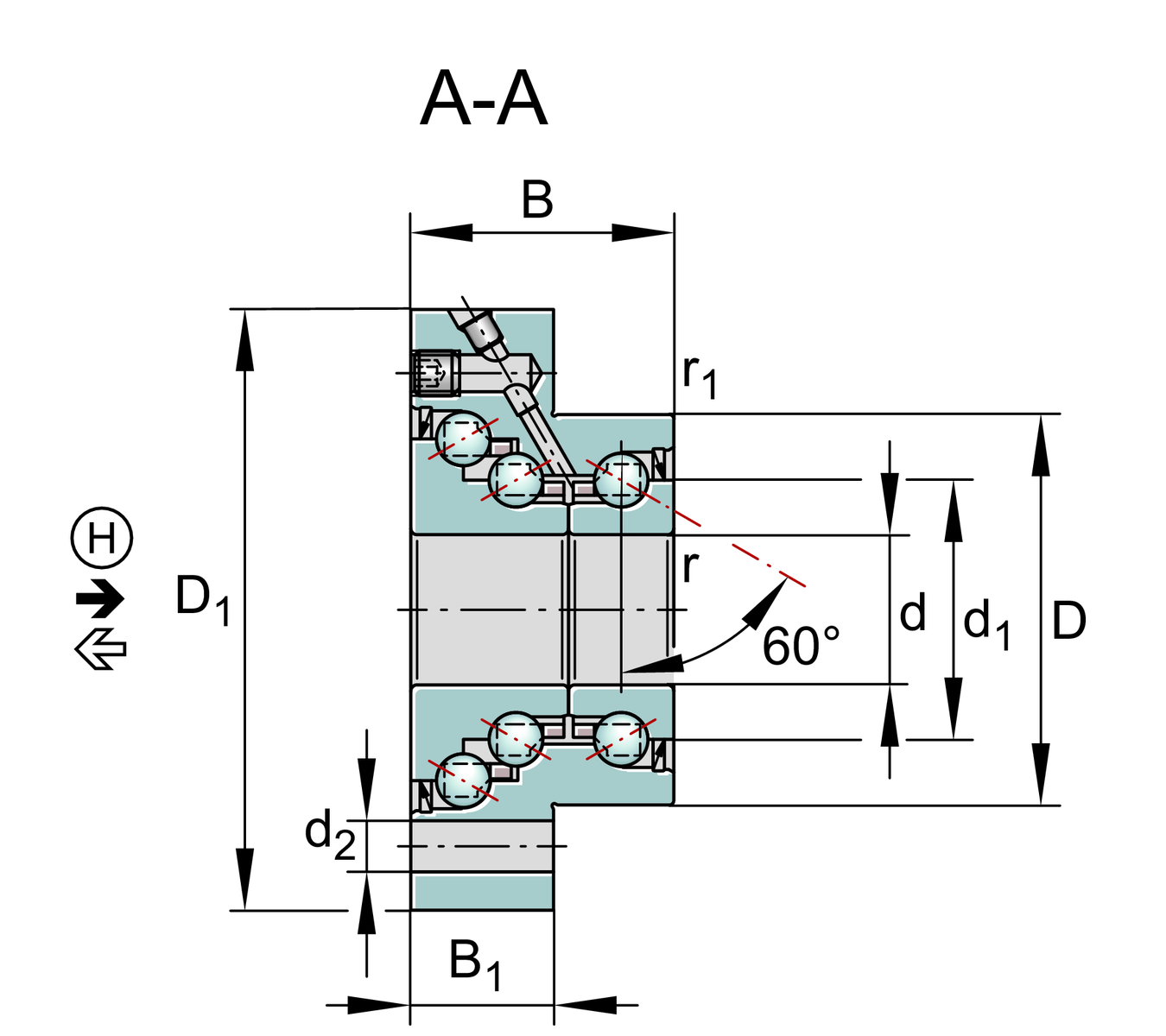

d |
20 mm |
D |
52 mm |
B |
35 mm |
Ca |
26000 N |
Coa |
47000 N |
Cua |
N |
Reference speed |
2200 rpm |
Limiting speed |
5000 rpm |
da min |
25 mm | Shaft shoulder minimum diameter |
d1 |
34.5 mm | Inner ring rib diameter |
D1 |
80 mm | Flange diameter |
da max |
43 mm | Shaft shoulder maximum diameter |
r min |
0.3 mm | Minimum chamfer size |
r1 min |
0.6 mm | Minimum chamfer size |
|
|
M6 | Bolt size |
n |
4 | Number of screws |
B1 |
19 mm | Flange thickness |
d2 |
6.8 mm | Fixed hole diameter |
J |
63 mm | Pitch diameter (hole) |
A |
62 mm | Flange width |
T min |
-30 °C | Minimum operating temperature |
T max |
120 °C | Maximum operating temperature |
