13661621501

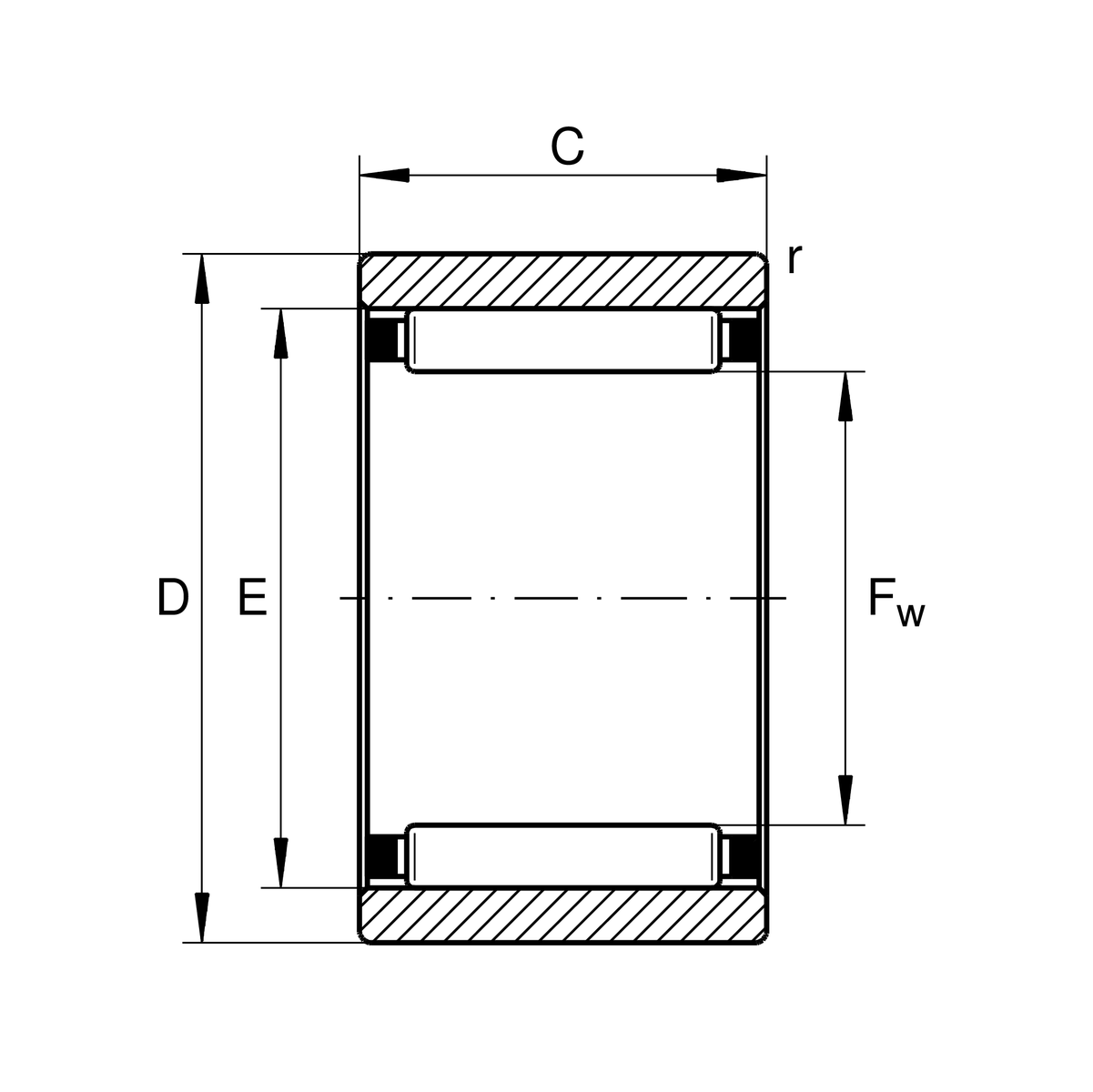

Fw |
6 mm |
D |
13 mm |
B |
8 mm |
Cr |
2600 N |
Cor |
2280 N |
Cur |
290 N |
Reference speed |
48500 rpm |
Limiting speed |
36500 rpm |

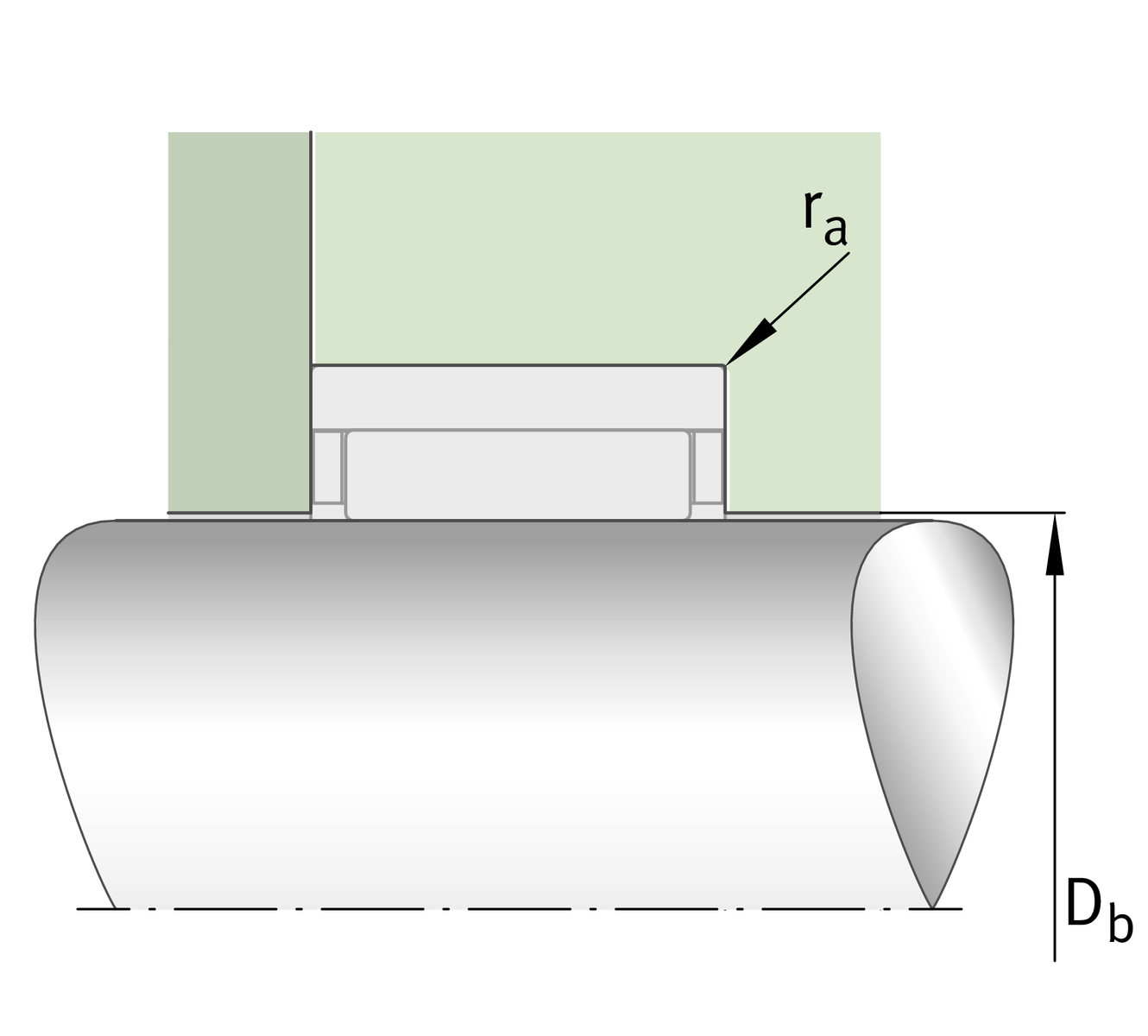

ramax |
0.3 mm | Maximum cavity radius |
rmin |
0.3 mm | Minimum chamfer size |
E |
9 mm | Outer race diameter |
db |
8.7 mm | Axial guide NK / shaft shoulder diameter |
Da |
9.3 mm | Diameter of outer ring shoulder |
Db |
6.3 mm | Axial guide NK / bearing pedestal shoulder diameter |
C |
8 mm | Outer ring width |
Tmin |
-20 °C | Minimum operating temperature |
Tmax |
120 °C | Maximum operating temperature |
